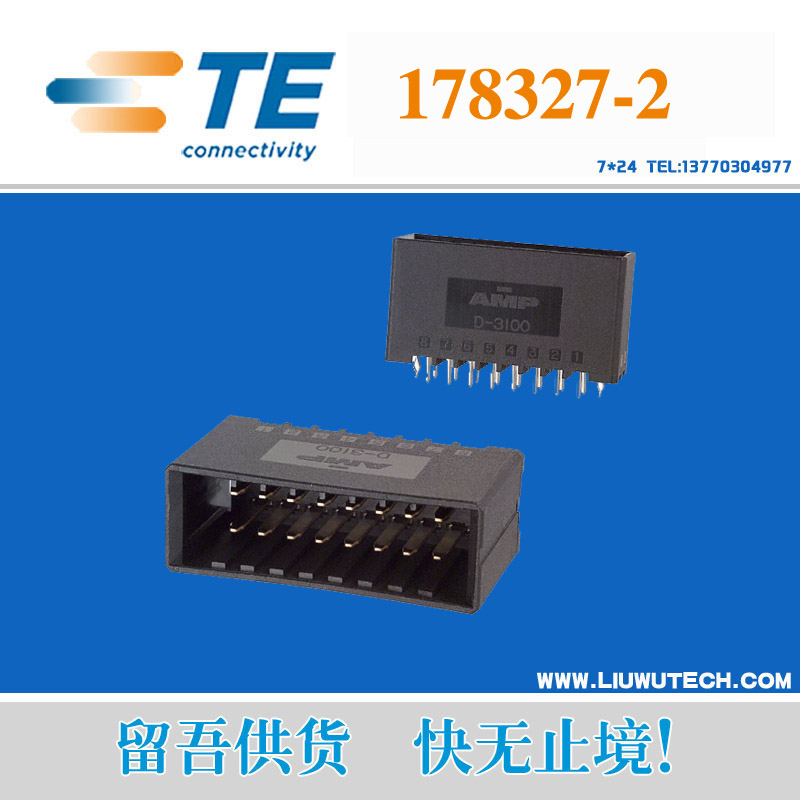

Product type features: - product line = Series Dynamic
Product type = connector assemblies
Connector type = header
- PCB installation angle = vertical
- PCB to keep the structure = yes
- seal
- CSA file number = LR7189
Mechanical connection: - type = bolt fixing device
Electrical characteristics: - contact current rating (A) = 8
- working voltage reference = AC / DC
- working voltage (VAC) = 250
- working voltage (VDC) = 250
Termination characteristics: - connection mode = welding
- printed circuit board terminal type
Size: - pin length ([in] mm) = 3.8 [0.148]
- PCB thickness ([in] mm) = 1.60 [0.063]
Main features: - row spacing ([in] mm) = 5.08 [0.200]
- with fixed device = equipped with
Contact features: - terminal type
- = double terminal arrangement
- terminal material = copper alloy
- contact area
- contact plating, with the site, thickness (m [in] [mu) = 0.38 [15]
- Contact Types Multiple = Without
- Plating Material Tail = Tin
- Plating Thickness Tail (m in]) = 2 [78.74]
- contact point bottom plating
- base material thickness (m [mu in]) = 1.30 [51.180]
Shell feature: - connector type = plug
- spacing ([in] mm) = 3.81 [0.1499]
- shell material = polyester GF
- shell color = black
- coordinate orientation identification =
- anti mode = polarization
Configuration feature: - digit = 16
- row number = 2
Industry standard: - comply with RoHS/ELV standards, RoHS standards, ELV standards
- lead free solder process is the highest of 240 C, the highest peak is 260 C, and the highest peak is 265 C
- RoHS/ELV comply with the record = always comply with RoHS
- agency / standard = UL, CSA
- UL certification
- UL certification = file number E28476
- Rating CSA = Certified
- shell fire rating = 94V-0 UL
Environment: - working temperature (C [F] -55) = +105 - [-67 - +221]
Use condition: - connect terminal = printed circuit board
- socket shell
Operation / application: - application = line on board
- contact transfer (typical application) = power supply
Packaging features: - packing: plastic packaging
- packing quantity = 12
Other: - product line = D-3100
- serial number = 3000
- brand = AMP
