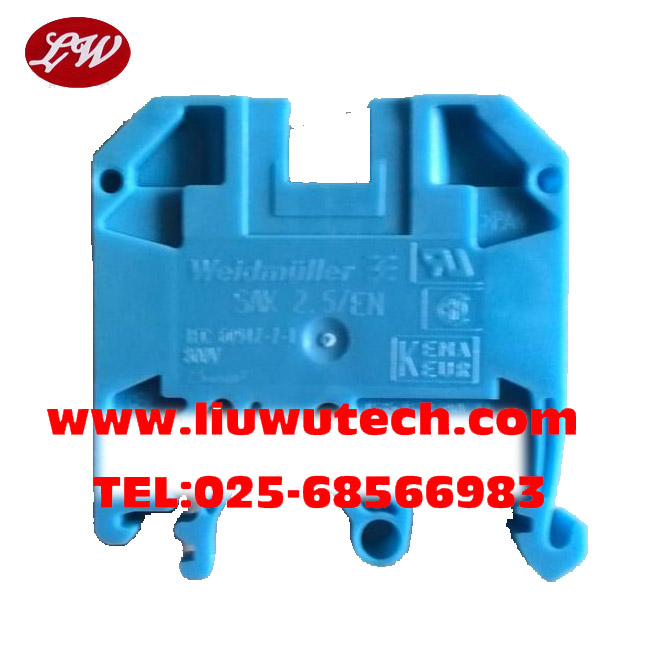

Type SAK 2.5/EN BL
Order No. 0218680000
Version SAK Series, Feed-through terminal, Rated cross-section: 2.5 mm², Screw connection, Direct mounting
GTIN (EAN) 4008190158385
Qty. 100 pc(s).
Dimensions and weights
Width 6.1 mm
Height 41.5 mm
Depth 40.5 mm
Net weight 7.16 g
Temperatures
Continuous operating temp., min. -50 °C
Continuous operating temp., max. 100 °C
Product information
Descriptive text technical data With twin wire-end ferrules ZH 0.5 to ZH 1.5, the rated voltage is 690 V.
Material data
Material PA 66
Colour Blue
UL 94 flammability rating V-2
Rating data IECEx/ATEX
Certificate No. (ATEX) KEMA97ATEX1798U
Certificate No. (IECEX) IECEXKEM06.0014U
Max. voltage (ATEX) 690 V
Current (ATEX) 21 A
Wire cross section max. (ATEX) 2.5 mm²
Max. voltage (IECEX) 690 V
Current (IECEX) 21 A
Wire cross section max. (IECEX) 2.5 mm²
Voltage, cross-connection CrossConnectionGuide.pdf
Operating temperature range For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7 Ex e II
Marking ATEX Directive 94/9/EC II 2 G D
System specifications
Version Screw connection, for screwable cross-connection, One end without connector
End cover plate required Yes
Number of levels 1
No. of clamping points per level 2
Levels cross-connected internally No
PE connection No
Mounting rail TS 35, TS 32
Additional technical data
Explosion-tested version Yes
Installation advice Direct mounting
Open sides right
Type of mounting Snap-on
CSA rating data
Certificate No. (CSA) 12400-129
Current size C (CSA) 25 A
Voltage size C (CSA) 600 V
Wire cross section max. (CSA) 10 AWG
Wire cross section min. (CSA) 26 AWG
Conductors for clamping (additional connection)
Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. 4 mm²
Conductors for clamping (rated connection)
Blade size 0.6 x 3.5 mm
Clamping range, rated connection, max. 6 mm²
Clamping range, rated connection, min. 0.13 mm²
Clamping screw M 2.5
Connection direction on side
Number of connections 2
Stripping length 10 mm
Tightening torque, max. 0.6 Nm
Tightening torque, min. 0.4 Nm
Twin wire-end ferrules, max. 1.5 mm²
Twin wire-end ferrules, min. 0.5 mm²
Type of connection Screw connection
Wire connection cross section AWG, max. AWG 12
Wire connection cross section AWG, min. AWG 26
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max. 4 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min. 0.5 mm²
Wire connection cross section, finely stranded, max. 4 mm²
Wire connection cross section, solid core max. rated connection 6 mm²
Wire connection cross section, solid core, min. rated connection 0.5 mm²
Wire connection cross-section, finely stranded, min. 0.5 mm²
Rating data
Rated cross-section 2.5 mm²
Rated voltage 800 V
Rated current 24 A
Current at maximum wires 41 A
Standards IEC 60947-7-1
Volume resistance according to IEC 60947-7-x 1.33 mΩ
Rated impulse withstand voltage 8 kV
Pollution severity 3
UL rating data
Certificate No. (UR) E60693
Conductor size Factory wiring max. (UR) 12 AWG
Conductor size Factory wiring min. (UR) 22 AWG
Conductor size Field wiring max. (UR) 12 AWG
Conductor size Field wiring min. (UR) 22 AWG
Current size C (UR) 20 A
Voltage size C (UR) 600 V
Classifications
ETIM 3.0 EC000897
ETIM 4.0 EC000897
ETIM 5.0 EC000897
ETIM 6.0 EC000897
UNSPSC 30-21-18-11
eClass 5.1 27-14-11-20
eClass 6.2 27-14-11-20
eClass 7.1 27-14-11-20
eClass 8.1 27-14-11-20
eClass 9.0 27-14-11-20
